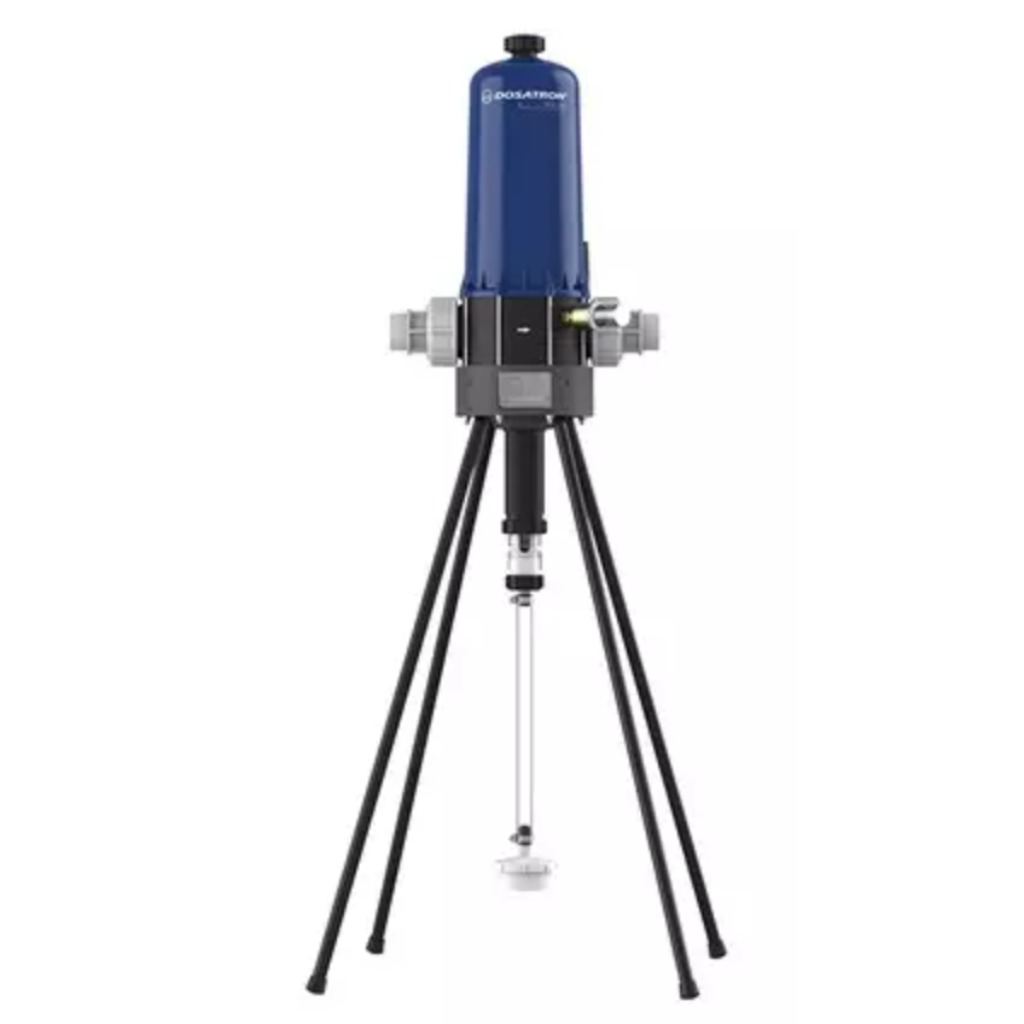

Dosatron D20WL2 0.2-2% 20 m3/h dosing pump
It guarantees effective sanitation for both drinking water and process water (boiler feed, cooling water, demineralized water, and water suitable for industrial use).
They allow direct reading and easy adjustment of the dosage value.
Self-priming up to 4 meters, Dosatron injection pumps guarantee dilution consistency.
Gaskets for alkaline additives
The dispenser is installed directly into the water supply line and operates using your mains water as its sole source of energy. Includes seals for alkaline additives
Chlorine or other disinfection chemicals are proportionally dosed and injected continuously into the water over a wide range of dosages.
The concentrated product dosage is directly proportional to the volume of water circulating through the chemical dosing pump, regardless of variations in flow rate and pressure of the mains feed water.
Uses of the Dosatron D20WL2
- Suitable for drinking water treatment.
- Disinfection of microfiltration, ultrafiltration, and osmosis units Reverse.
- Maintenance of hot or cold water networks.
- Treatment against legionellosis.
Specific features of the Dosatron D20WL2
- Proportionality depends on the water flow rate.
- The D20 WL range meets treatment needs from 1 to 20 m3.
- Cast aluminum motor hood.
- Integrated homogenization.
Specifications
- Service water pressure 0.12 - 10 bar
- Injection range 0.2 - 2 % [1:500 - 1:50]
- Stroke volume ~ 5 l
- Water flow 1 - 20 m3/h
- Injection of concentrated additive 2 - 400 l/h
- NPT-BSP connections 50x60 - 2 M
